Precision Telemetry: Decoding the Anemometer and Environmental Sensors
In the world of data acquisition, sensors act as the "sensory nervous system" for our tech. While we often group environmental monitoring together, the hardware required to measure static variables versus dynamic motion is fundamentally different.
1. The Anemometer: Capturing the Kinetic Air

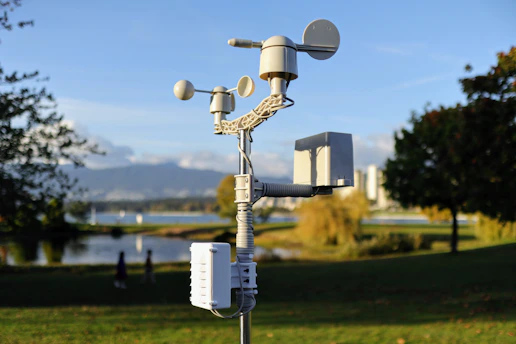

An Anemometer is a specialized instrument designed to measure wind speed and direction. Whether it is a mechanical "cup" design or a high-tech ultrasonic version, it translates the kinetic energy of moving air into a readable digital or analog signal.
Wind Speed: Measured typically in meters per second (m/s) or knots.
Direction: Often coupled with a wind vane to provide a full 360° vector of air movement.
2. The DHT11: The Environmental Duo
While the anemometer handles motion, the DHT11 is a composite sensor used for ambient monitoring. It is a staple in the IoT community due to its reliability and low cost.
Temperature: Uses a NTC (Negative Temperature Coefficient) thermistor.
Humidity: Utilizes a resistive-type humidity measurement component to provide a digital output.
Critical Applications
The integration of these sensors is vital across high-stakes industries:
Aviation: Providing real-time wind shear and crosswind data for safe take-offs and landings.
Meteorology: Feeding global climate models with localized barometric and thermal data.
Smart Agriculture & IoT: Automating greenhouse climates and irrigation systems based on precise humidity and wind thresholds.
Internal Architecture: The Anatomy of an Anemometer
The internal design of a professional-grade anemometer is a masterclass in converting kinetic energy into precise electrical data. Its architecture is divided into three primary mechanical and electronic sub-systems.
1. The Kinetic Interface: Wind Cups & Rotor Beam
The most visible component consists of three to four aerodynamic cups (often crafted from carbon fiber for high strength-to-weight ratio) mounted horizontally on a vertical shaft.
Linear Correlation: The design ensures that the rate of rotation (f) is directly proportional to the wind speed (v).
Physics Principle: v∝f. As wind velocity increases, the centrifugal force and torque on the shaft increase at a predictable, linear rate.
2. The Pulse Generator: Rotor Assembly & Optocoupler
To translate physical spinning into data, the internal shaft is connected to a toothed rotor (or encoder disk).
The Optocoupler: This is an optical sensor consisting of an infrared LED and a phototransistor.
Optical Encoding: As the teeth of the rotor pass through the sensor, they periodically "break" the light beam. The optocoupler detects these light pulses and converts them into a square wave signal.
The Result: The frequency of these pulses tells the onboard micro-controller exactly how fast the wind is blowing.
3. The Directional Vector: Potentiometer (Optional)
While the cups measure speed, a potentiometer is integrated when the device needs to act as a Wind Vane.
Variable Resistance: The potentiometer is linked to a directional tail. As the wind shifts the tail, it rotates the potentiometer's wiper.
Voltage Mapping: The change in resistance creates a varying output voltage. This voltage corresponds to a specific degree on the compass (0° to 360°), allowing for precise azimuth detection.
Hardware Specifications: The Technical Data
Input Voltage: 12V – 24V DC (Compatible with standard DC Power Jack Adapters)
Output Signal: 0V – 5V Analog (Standard linear output)
Measurement Range: 0 to 32.4 m/s (Covers everything from calm to storm force)
Interface Type: 3-Wire Lead for simplified IoT integration
Wiring & Pinout Configuration
🟫 BROWN WIRE: Power Supply (+) — Connect this to your 12V-24V source.
⬛ BLACK WIRE: Ground (-) — Connect this to the common ground (GND).
🟦 BLUE WIRE: Signal Output — Connect this to your Analog Input (e.g., Pin A0 on Arduino/ESP32).
Calibration Note: The 0.054V Offset
It is important to note that this sensor does not typically drop to a "true zero" voltage when the wind is still.
The Reality: At 0 m/s, the output signal usually hovers around 0.054V.
The Solution: When writing your code, implement a small Deadband. Any reading at or below 0.054V should be rounded down to 0 m/s to ensure your data logs remain accurate and free of "ghost" wind readings.
